THDF10-I型、THDF15-I型紧急逃生呼吸器(EEBD)是根据国际海事组织MSC.98(73)决议通过的，于2002年7月1日成为强制型要求的《国际消防安全系统规则》设计制造的船用产品。本产品通过了CCS认证，有船检证书。

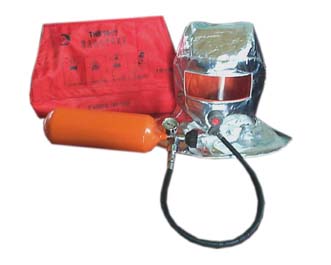

它由压缩空气瓶、减压器、压力表、输气导管、头罩、背包等组成，能提供个人10或15 分钟以上的恒流气体，可供处于有毒、有害、烟雾、缺氧环境中的人员逃生使用。
气瓶上装有压力表始终显示气瓶内压力。头罩或全面罩上装有呼气阀，将使用者呼出的气体排出保护罩外，由于保护罩内的气体压力大于外 界环境大气压力，所以环境气体不能进入保护罩，从而达到呼吸保护的目的。该装置体积小，可由人员随身携带且不影响人员的正常活动。
其结构简单，操作简便，使用者在未经培训的情况下，简要阅读使用说明后即可正确操作.
|
Emergency escape breathing devices
1.The EEBD are only used for escape from a compartment that has a hazardous atmosphere to provide personnel breathing protection .Not to be used for fighting fire, entering oxygen deficient voids or tanks, or worn by fire fighters 2. There is a pressure gauge on the cylinder to indicate the cylinder pressure .The cylinder pressure of EEBD is not indicated by a pressure gauge during storaging.3. The hood is a flame resistant head cover which completely covers the head, neck, and may cover portions of the shoulders, there is a clear window on it。4. Easy to use, open the cylinder valve and put the hood on head when use
|
Type
|
Cylinder Volume
l
|
Working pressure
(Mpa)
|
Storing air
l
|
Supply airflow
l/min
|
Usable time
(min)
|
|
THD/10-I
|
2.2
|
21
|
>400
|
≥35
|
≥10
|
|
THD/15-I
|
3
|
21
|
>600
|
≥35
|
≥15
|
|
